Kaabo Central Display

The Kaabo Central Display

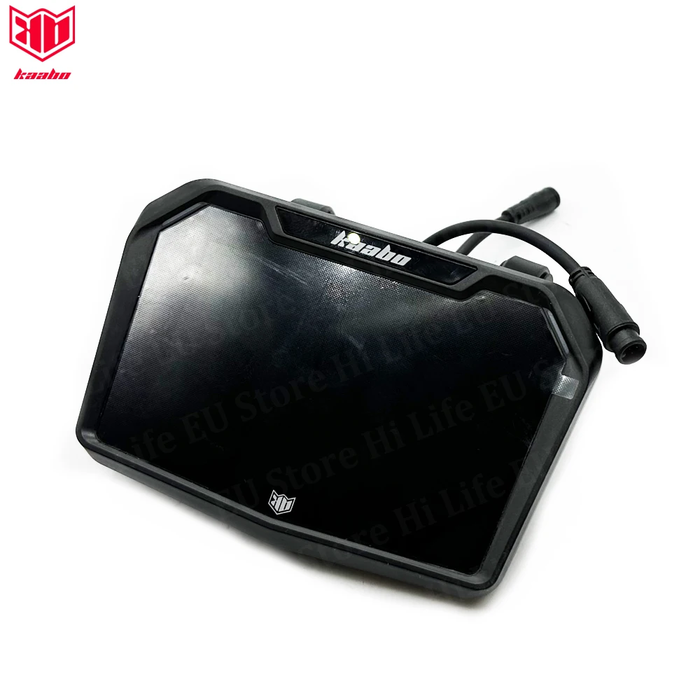

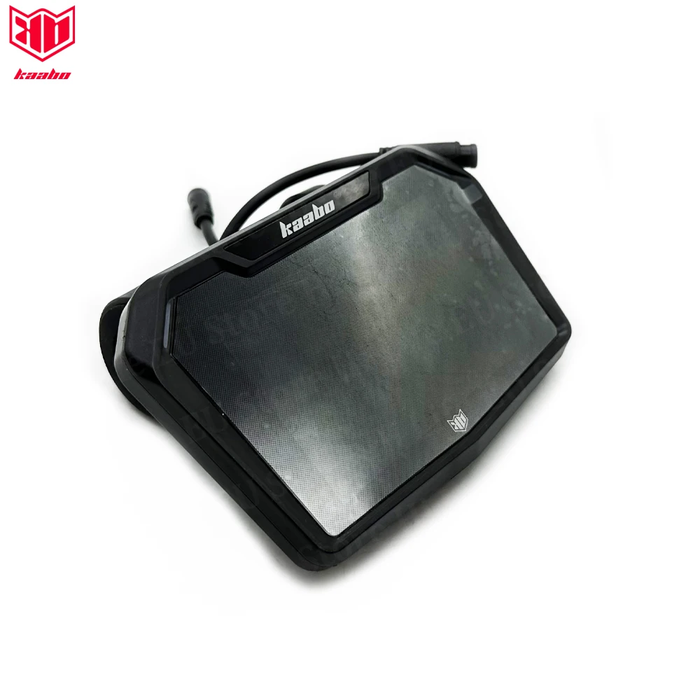

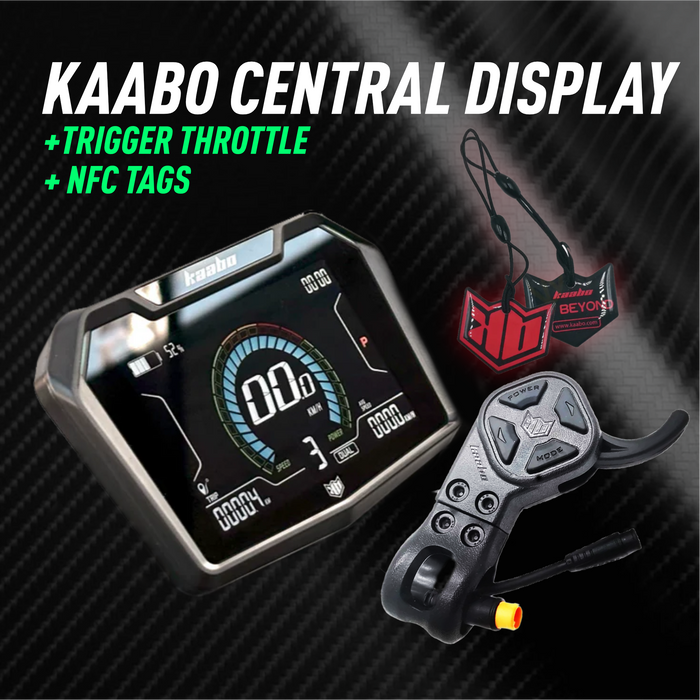

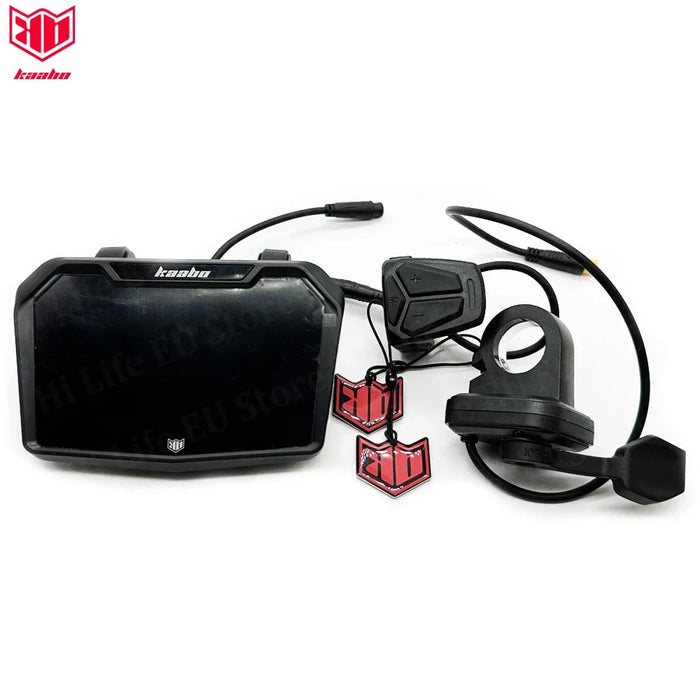

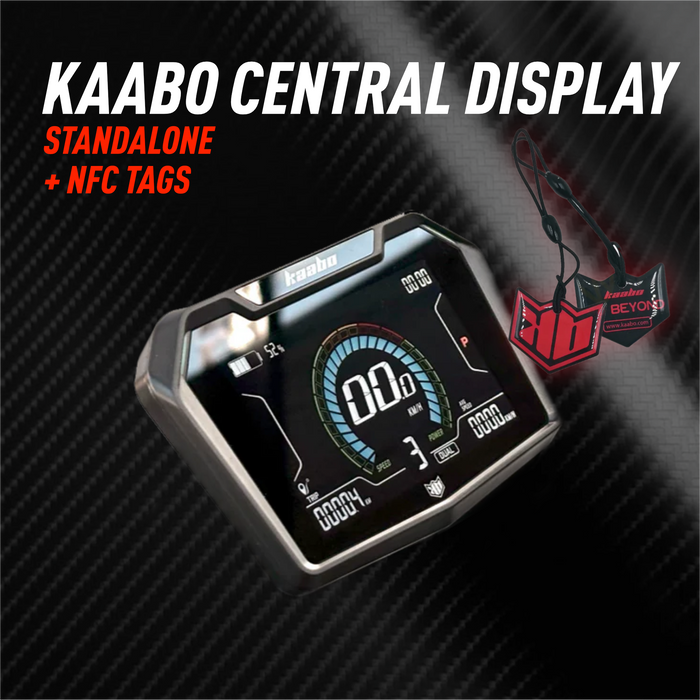

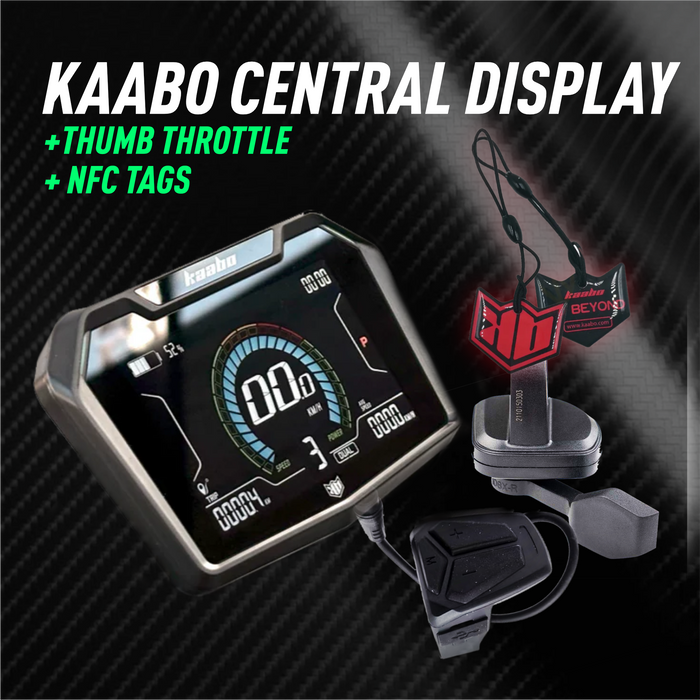

Get a full view of your ride with the Kaabo Central Display. This 3.5-inch full-colour TFT screen is the central command centre for your scooter, giving you all the information you need in a clear, easy-to-read format.

Key Features & Compatibility

Specifically designed for Kaabo Mantis X, King GT, Wolf Warrior X GT, and Wolf King GT Pro electric scooters, this display is compatible with 48V, 60V and 72V electrical systems. It's built to work seamlessly with a sine wave controller setup.

Please note: This display is not compatible with any other scooter brands or models, or with MiniMotors systems.

Technical Specifications

• Display: A high-brightness, high-resolution 3.5-inch IPS color LCD screen (320x480 resolution) with a full-viewing angle. The screen is protected by durable, tempered glass.

• Durability: Built to withstand the elements, the display features a PC+ABS casing and an IP65 waterproof rating. Special bonding technology ensures the screen remains visible even in direct sunlight.

• Power: Operates on DC 48/60/72V with a low rated working current of 42mA.

• Connectivity: Communicates using the UART protocol.

• Operating Temperatures: Functions reliably in temperatures from -10°C to 60°C.

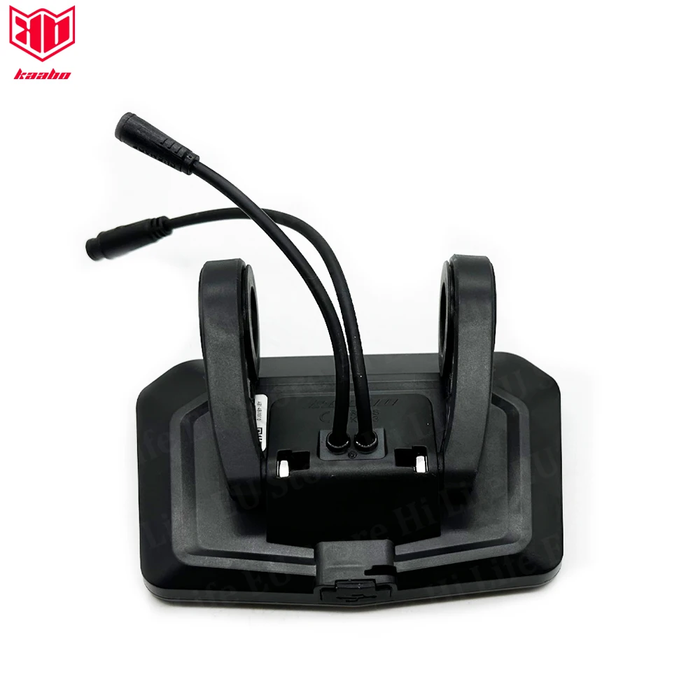

• Installation: Fits handlebars with diameters of 31.8mm.

Functional Overview

The Kaabo Central Display puts a wealth of information at your fingertips, letting you fine-tune your ride and monitor key metrics:

• Real-time data: Instantly see your speed, mileage, and battery power.

• Control: Easily switch between single and dual motor modes, activate cruise control, and manage your electronic brakes.

• Customization: Change between metric and imperial units.

• Diagnostics: View fault codes

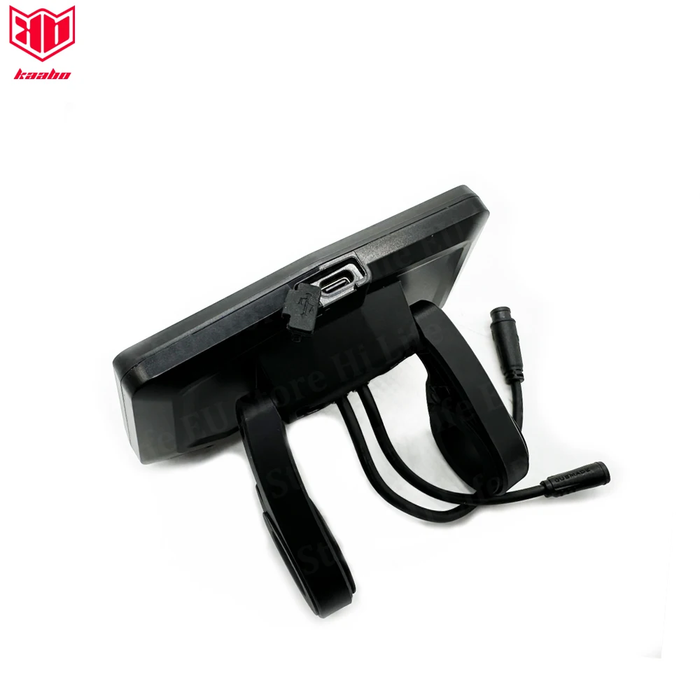

• Convenience: The display includes a built-in USB-C port for charging your devices on the go.

Installation & Operation

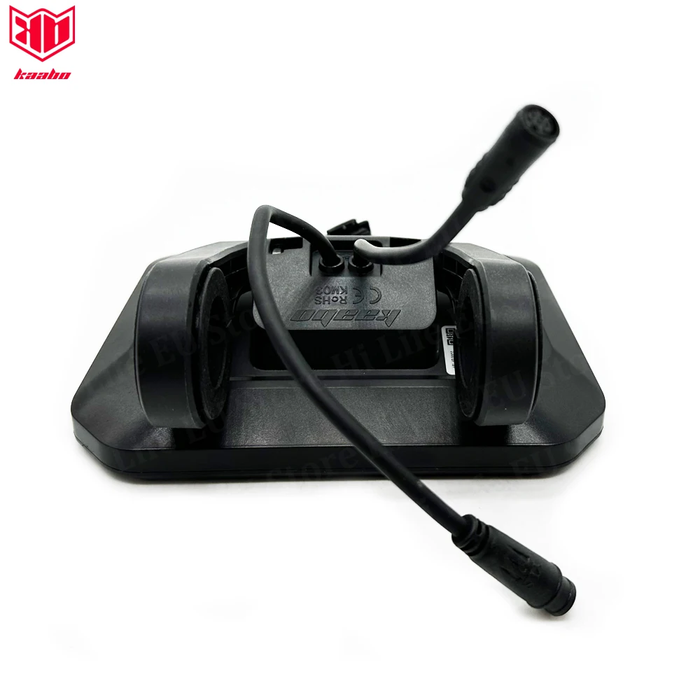

The display comes with two locking rings. When installing, it's crucial to tighten the rings with a maximum torque of 0.8 N.m. to avoid damage, as over-tightening is not covered under warranty.

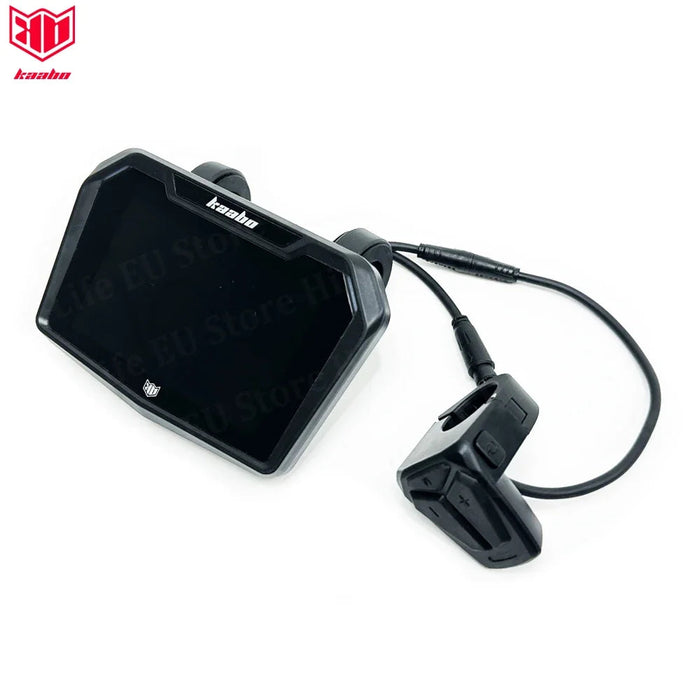

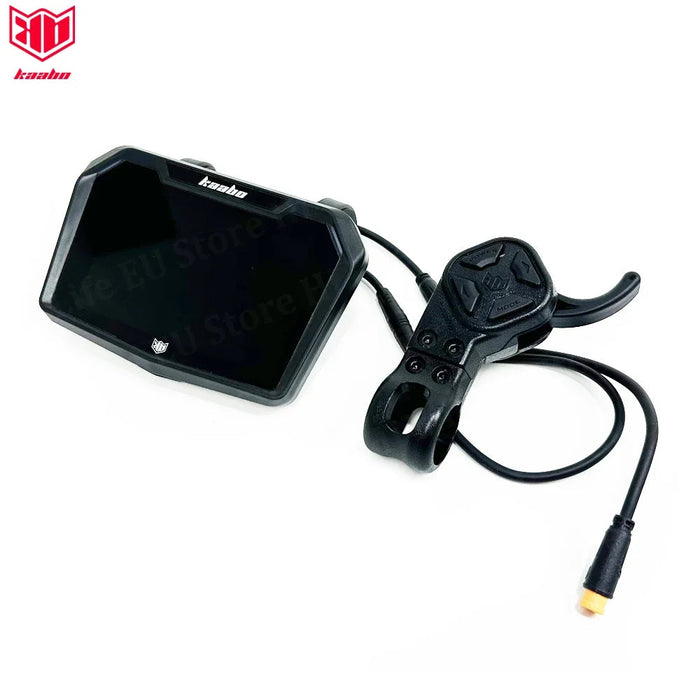

Button Functions:

• Power Button: Turns the scooter on and off.

• Adjustment Button: Adjusts gear settings and, with a long press or in combination with the Mode button, navigates menus.

• Mode Button: Switches between different display screens and enters the parameter setting menu.

• USB Port: Use this to charge your phone or other devices.
