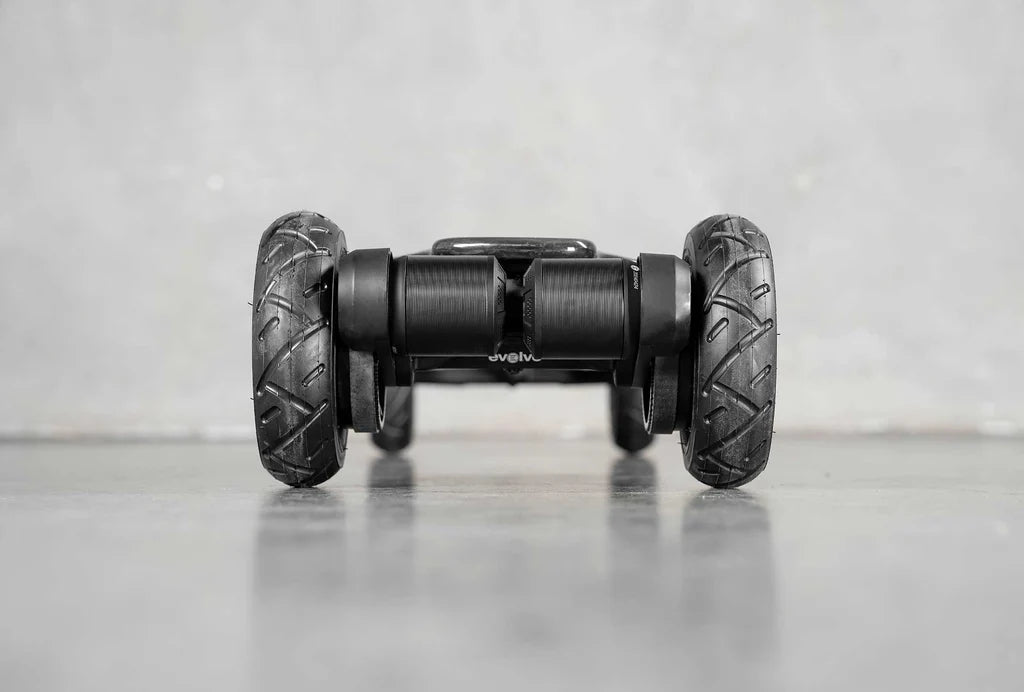

Evolve Diablo Carbon All Terrain

Evolve Diablo Carbon All Terrain

Availability:
Low stock
$3,249.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
$3,249.00 - $3,249.00
$3,249.00
Save $250.00

50 km/h Top Speed

100 kg Max Load

Medium Water Resistance

×

Buy Now Pay Later

Q Card and Q Mastercard are your perfect shopping partner with a range of Interest Free Deals

You can make everyday purchases and even get Interest Free Periods with Purple Visa Card

Apply Now
* Repayments shown above are indicative only and may vary upon application
Apply Now
* Repayments shown above are indicative only and may vary upon application

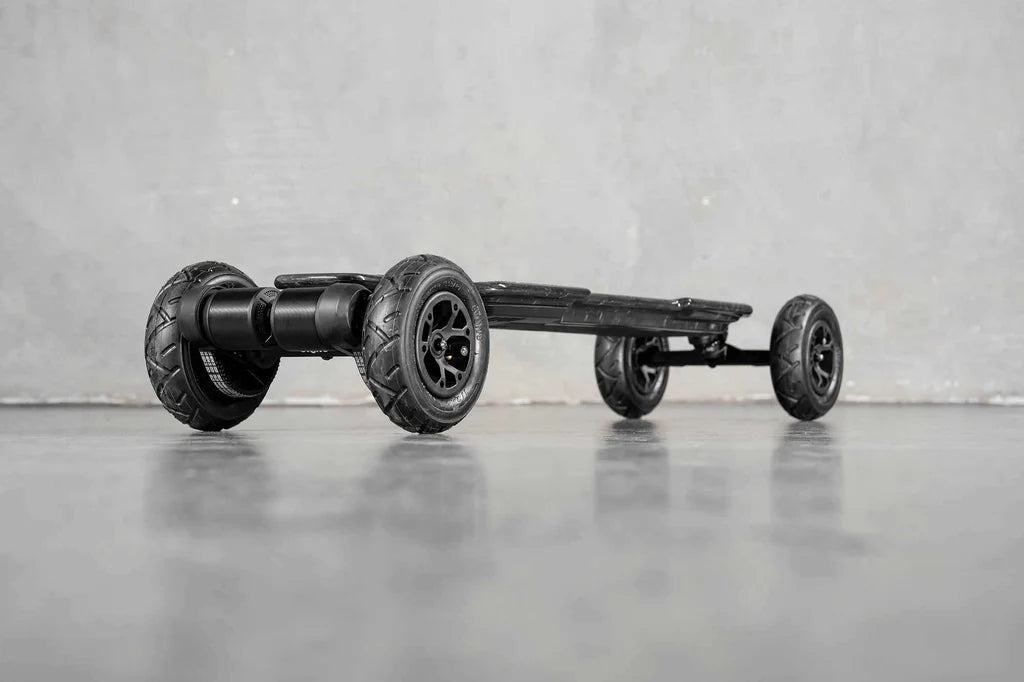

Evolve Diablo Carbon All Terrain

  • Conquer Any Terrain

  • Forged Carbon Fibre Deck

  • Unmatched Performance

Power 7000 Watts - Top Speed 50 km/h - Range 50 km - Hills 45%+ Incline

ABOUT THE BOARD

Engineered to reach speeds up to 50 km/h and boasting a range of 50 km, this electric skateboard is built to handle diverse terrains effortlessly. Its forged carbon fiber deck ensures robustness and agility, providing a stable yet dynamic riding experience for adventurers seeking new thrills in any terrain. Equipped with Evolve's Super Carve 2 Trucks, the Diablo Carbon All-terrain offers enhanced stability and precise carving capabilities, delivering a ride that replicates the endless surf wave, or limitless snowboard run.


Powered by the Samsung 50S cell, this board sets a new benchmark in ride times and power efficiency, making it ideal for extended adventures. The advanced eFOC 2.0 Motor Controller and ergonomic Phaze remote offer seamless connectivity and precise control, complemented by the Evolve App's real-time ride data displayed on a vibrant LCD. Designed to replicate the fluidity of surfing or snowboarding, the Diablo Carbon All-terrain merges cutting-edge technology with uncompromising performance.

OUR BIGGEST BATTERYTO DATE

Samsung 50S cell offers up to 20% longer ride times and a 180A max discharge, boosting Diablo's power!



EFOC 2.0 MOTOR CONTROLLER

  • Custom 50V
  • 200A Dual-Motor Driver
  • FOC Motor Communication
  • Bluetooth Connection





BUILT TO CARVE

Designed to replicate the
endless surf wave, or
limitless snowboard run.

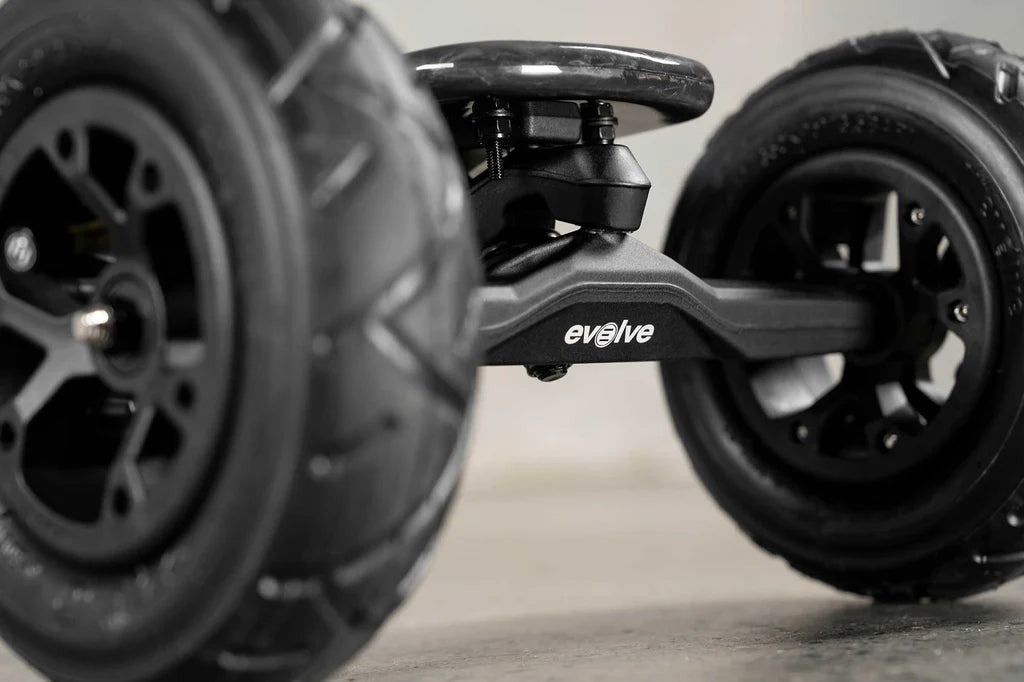

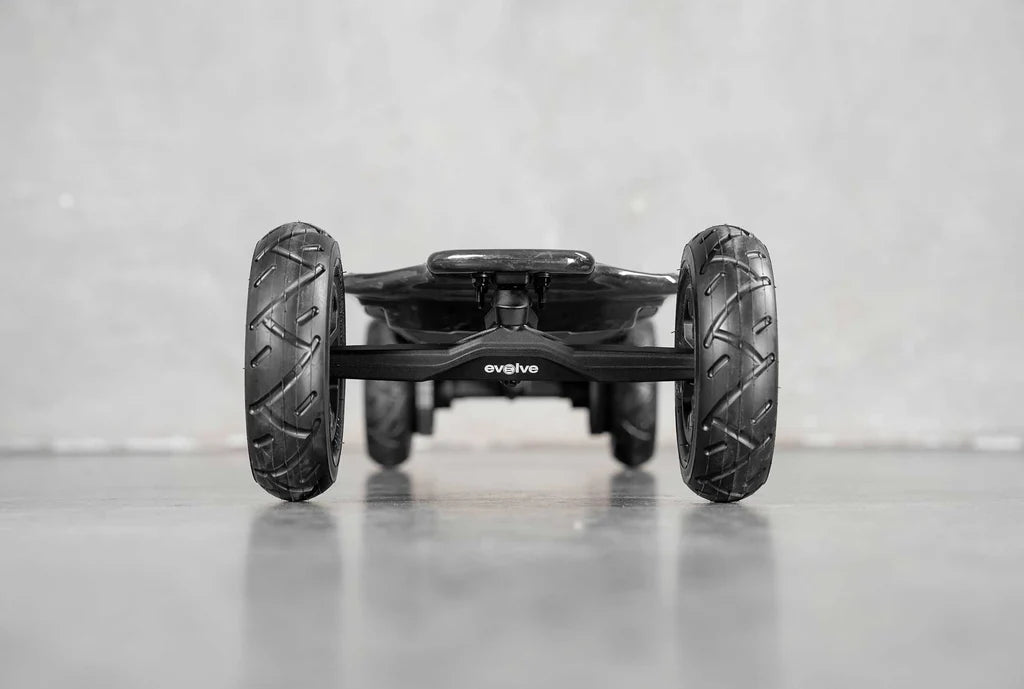

SUPER CARVE 2 TRUCKS

Evolve’s New Super Carve 2 Trucks for more precise carve feeling and increased stability.

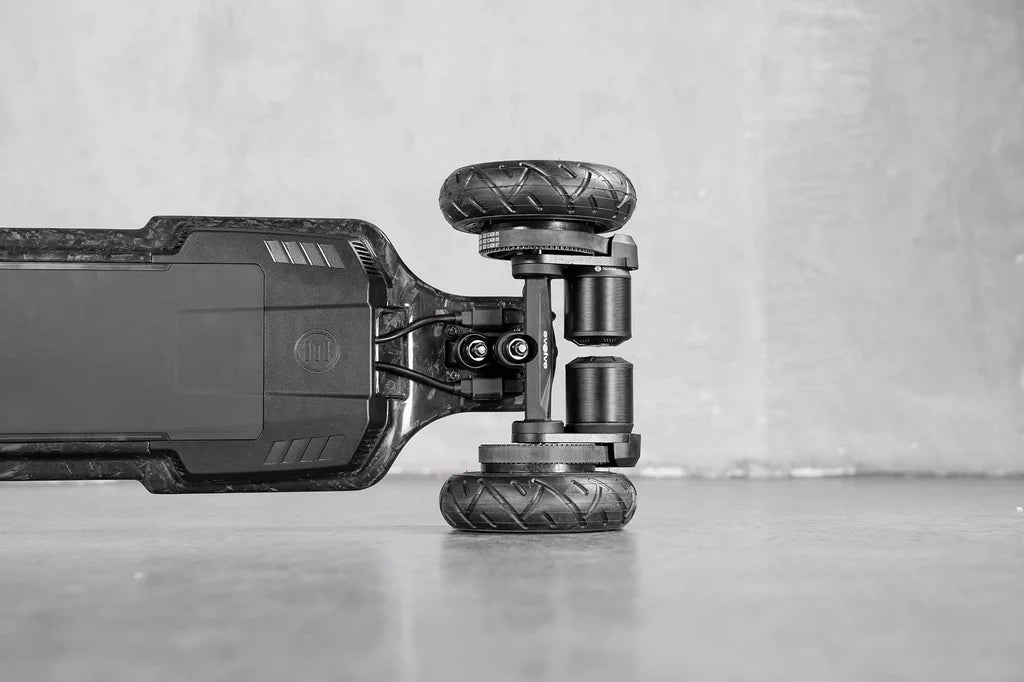

 6374 3500W MOTORS

Delivers immense power, enabling rapid acceleration, high speeds, and exceptional hill-climbing capabilities.

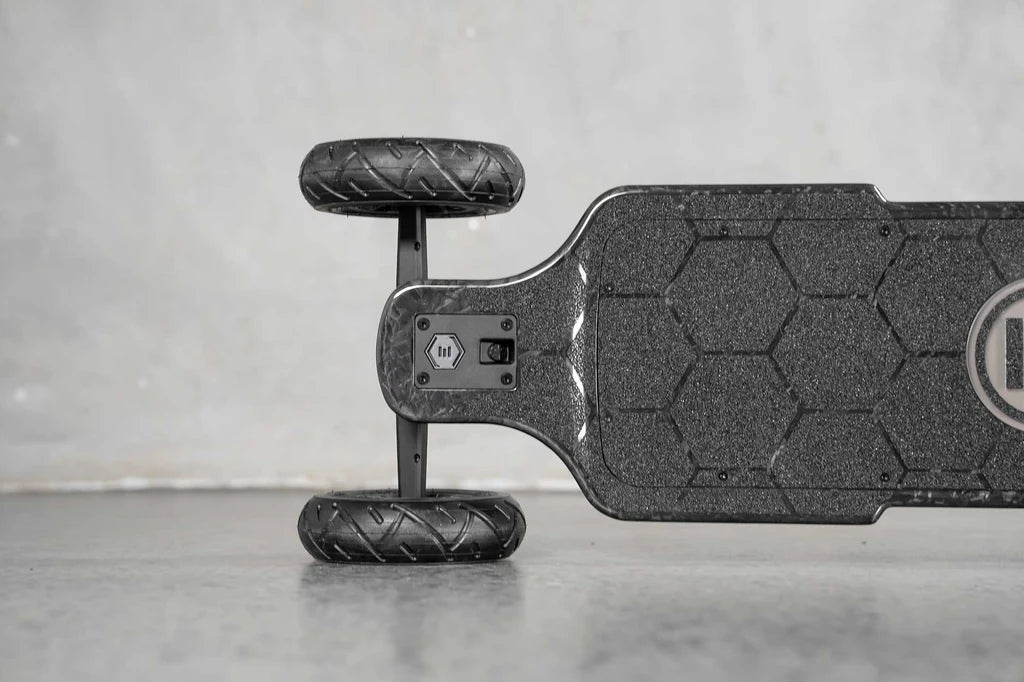

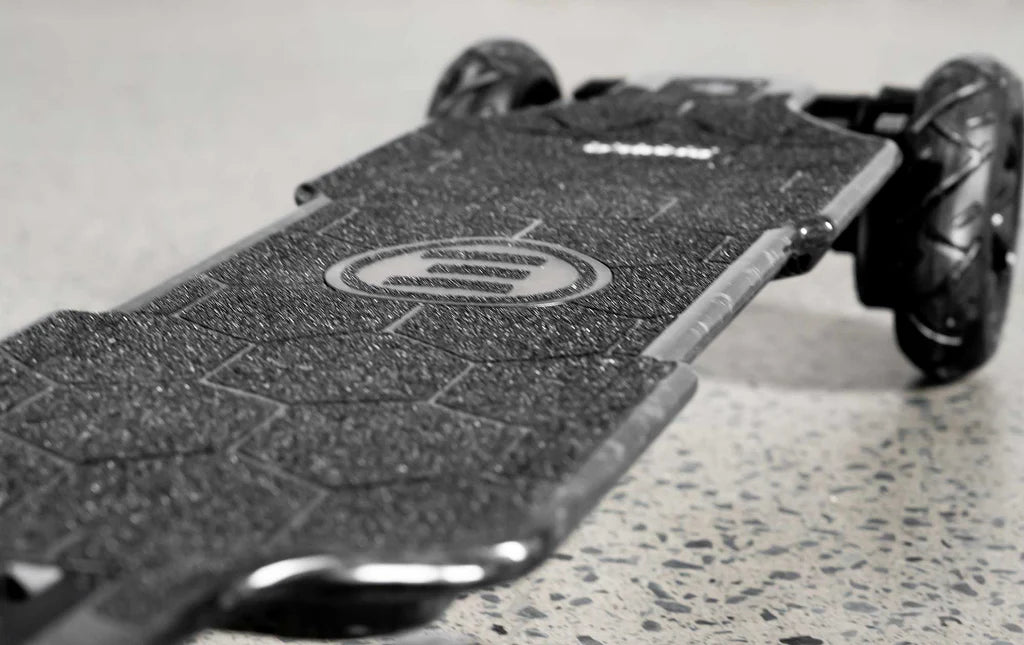

ERGONOMIC STANCE

The forged carbon fibre deck ensures robustness and agility, with dropdown shoulders and a wider foot landing for stability.

Two Boards in One



COOLING

This keeps the electrics cool and efficient so you get maximum performance.

PHAZE REMOTE

The Phaze remote, with dual triggers for acceleration / braking, boasts a robust CNC aluminium frame.

EVOLVE APP

Real-time ride data on a full-color LCD. Four speed modes match your skill level.

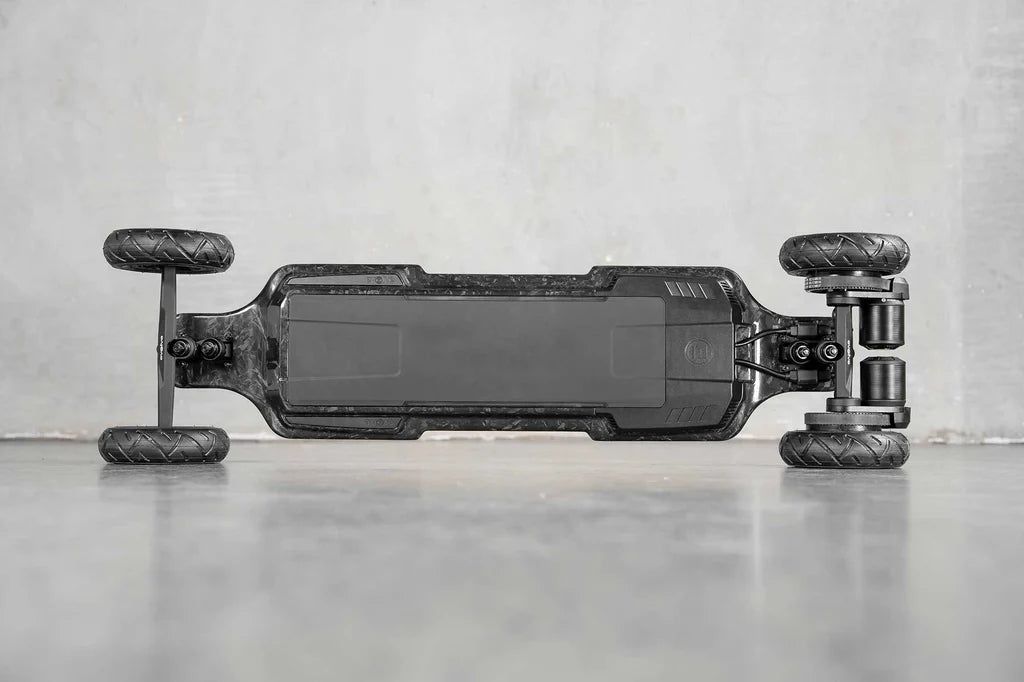

 SPECS

DECK MATERIALS: Forged carbon fibre
DECK LENGTH: 100cm (39.3")
WHEEL BASE: 96.5cm (38")
TRUCKS: Evolve Supercarve 2 - Forged/CNC - Black Finish
WHEELS: Evolve 175mm/7 inch pneumatic tyres.
MOTOR: Dual 6374 3500w rated  (7000w Total) custom brushless sensored motors
MOTOR CONTROLLER / ESC: EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.
BEARINGS: Evolve Precision  Bearings
BATTERY: 43.2v - 864WH - 20AH - Samsung 50S
RECHARGE: 4 hrs
REMOTE: Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT: 14.3kg (31lb)
RANGE: Up to 50km (31 miles)
TOP SPEED: 50km/h (31 mph)
MAX LOAD: 120 kg (265 lbs)
SUITABLE TERRAIN: Short grass, dirt, gravel, roads and footpaths
SLIDES: Off road yes, not recommend on sealed surfaces
HILLS: 45% + gradient.
BRAKING: EFOC2 regenerative braking, super smooth with adjustable brake and acceleration curves using the Explore APP

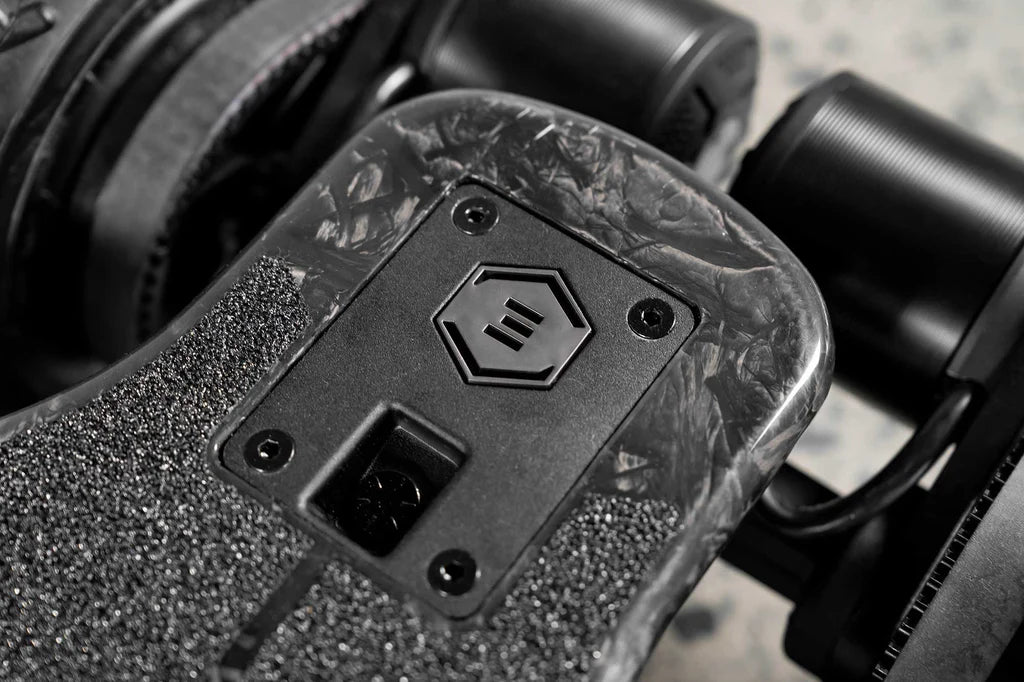

AESTHETICS: World-first and industry-leading chassis-style deck made from forged carbon fibre. The deck seamlessly integrates performance with technology. A custom CNC heatsink incorporates cooling vents and adds to the sophisticated performance styling.
LIGHTS: Integrated under-body & logo LED lights with user-customisable control via the remote and Evolve app, including Smart Brake Lights





WHAT'S IN THE BOX

Your new Diablo Carbon All Terrain
Fast charger (5A)
Phaze Remote, leash and USB-C charging cable
Y tool
Spare screws set



FAQ

1. Whats the difference between the Hadean and Diablo series?

 The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.


2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.


3. Can the Renegade be upgraded to the Renegade Diablo?

 Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.


4. Can I install the new SuperCarve 2 trucks on my Evolve board?

 Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.


5. Why does my remote vibrate when accelerating hard or riding up a hill?

 If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.


6. Can I install the Diablo 6374 motors on my Hadean?

 The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.


7. Why is my remote displaying ‘Heat’ and vibrating?

 If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.
